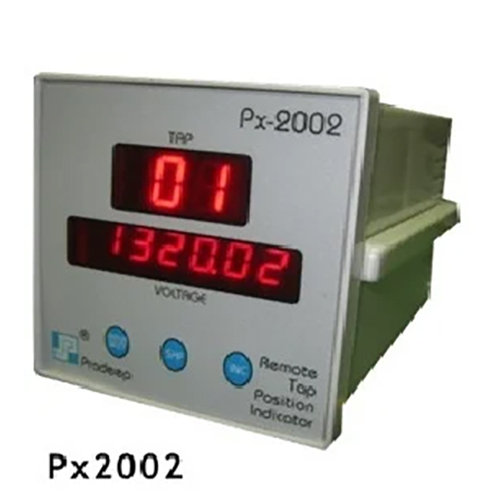

Tap Position Indicator (TPI) Px2002

Get a Price/Quote

MOQ : 5 Pieces

Tap Position Indicator (TPI) Px2002 Specification

Product Type
Tap Position Indicator

Material
MS

Size
Different Sizes Available

Color
White

Warranty
Yes

Tap Position Indicator (TPI) Px2002 Trade Information

Minimum Order Quantity
5 Pieces

Supply Ability
300 Pieces Per Month

Delivery Time
1 Months

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

Certifications
All state electricity board accepted

About Tap Position Indicator (TPI) Px2002

PX 2002

Technical Specifications

Application
    Indication of operating tap no., and voltage
Mounting
    Flush mounting
Optional instruments
    Repeater model REP 2002
Display
    2, and 3.5 digits respectively, 7 segment LED 12.7 MM ht
Top range
    35 positions
Auxiliary supply
    110v - 230v ac OR 90v - 260v dc
Output
    One output 4mA - 20mA
Optional additional output
     NA
Tpe of Sensor
    10 TO 1000 per step
Accuracy of output
    +/-1
Adjustment / setting of display
    Available or voltage
Test knob
    Nil
Cut-out size required
    92mm*92mm
Reference drg. no.
    PD/TPI/01 it.6

Features

Interfaces with conversion front panels to replace popular industry tapchanger controls.
Serial communication ports with several on-board communication protocols.
Two active serial communication ports, through RS-232 & RS-485.
